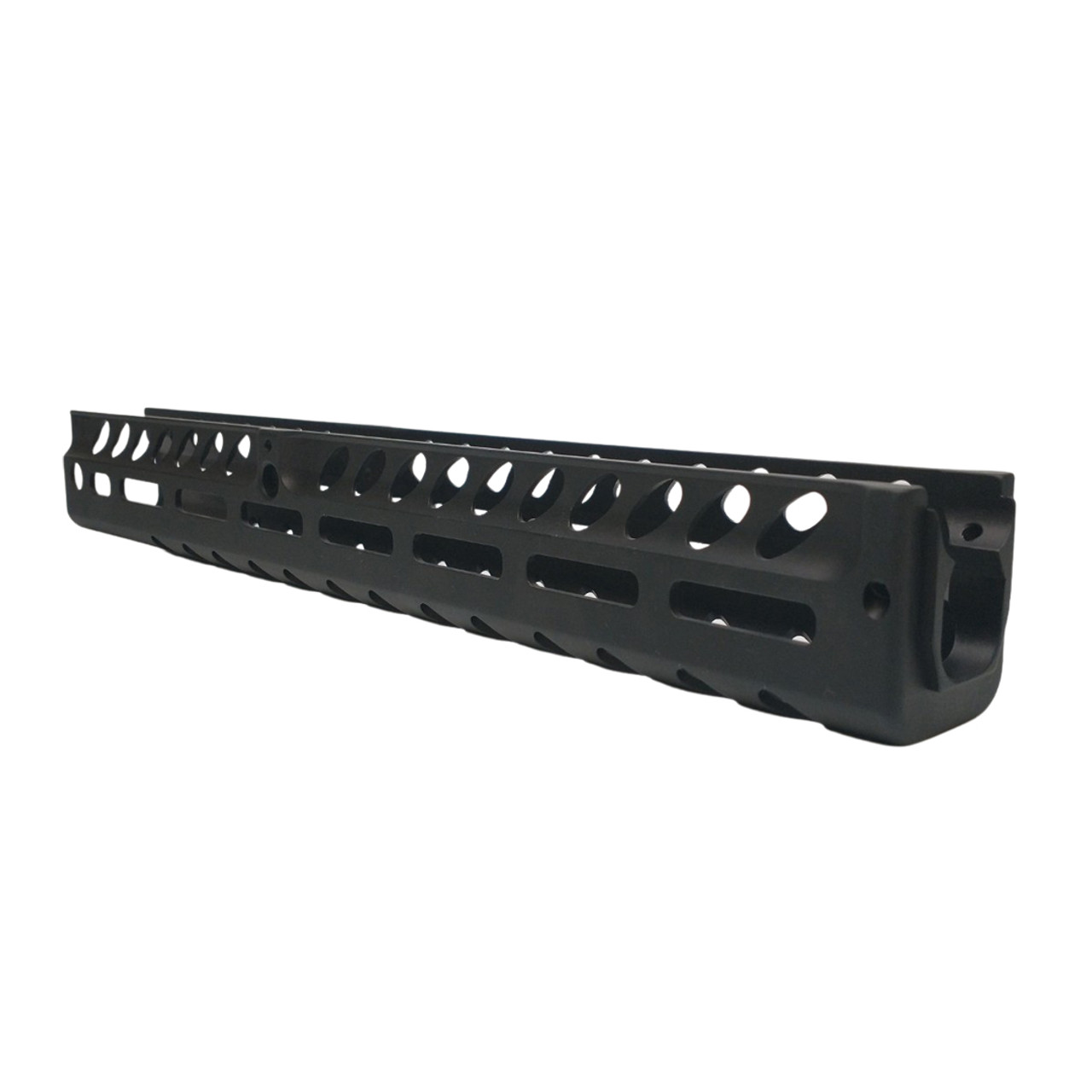

RPP Henry M-LOK Aluminum Handguard Rail Gen 2





FEATURES: 3 Flush Cup holes for sling swivels, 1 Trad sling stud hole, 24 M-LOK slots, 18 finger grooves per side

NEW** LOADING PORT CUTOUT: Load via the mag tube port, or tube front, or side loading gate if you have one.

MATERIAL: Made of 6061 Type III anodized aluminum, or available with Cerakote

WEIGHT: 7.5 oz (similar to the factory forearm)

HANDGUARD LENGTH: 13.25″ Length (exposed opening mag tube loading port)

MOUNTING HARDWARE: 17-4ph stainless tenon (provided) and Four mounting set screws afford rock solid bedding and eliminate lateral shift.

FITS: Henry models: Side Gates, X Series, Color Case Hardened, Big Boy Steels, All Weather, .410 Axe rifles (all calibers).

DOES NOT FIT: Henry Long Rangers, Single Shots or 22’s (search for separate Henry 22 Rimfire Forearm on our website), Henry Long Rangers, Henry barrel band models, Henry 45/70 H010GCC and 30-30 H009GCC with the longer forend and 22″ octagon barrel

INSTALLATION: Watch the install video from customers. Taking Henry’s apart can be tricky. We’re not liable for any damage to your rifle.

MLOK 6-8 CARTRIDGE QUIVERS: Available on our website for 45-70 govt, 30-30 Win, 444, 44 Mag, 45 Colt, 357 Mag.

Our Gen 2 Handguards have the same great aesthetic and robust functionality as our popular Gen 1 parts, but are built from a single, solid billet of aluminum. This allowed for an increase in rigidity, as well as a reduction in weight.

Fits ALL Henry rifle models in the following calibers: 45-70, 30-30 Win, 38-55, 410, 44 Mag, 357 Mag, 44 Mag. We have a load port cutout and NO load port cutout options.

In the Package: one 13.25″ long M-LOK handguard, one barrel/mag tube tenon & two screws, four mounting set screws.

Take a look at the full list of features

  • Machined from one piece of solid billet aluminum for increased rigidity and reduced weight
  • Full length 13.25″ x 1.5″ width x ” 1.6″ height x 7.5 oz weight
  • Heavy duty tenon mount provides increased durability and load bearing capacity
  • Four set screws afford rock solid bedding and eliminate lateral shift
  • Even easier DIY installation
  • Extra M-LOK slots – now 24 slots total
  • Three QD Flush Cup holes for push button sling swivels
  • Smoother, cleaner lines on each side with dedicated parts for different rifle models
  • Flat bottom provides increased stability when shooting from a rest, while the slender width, deep finger grooves and rounded lower corners offer comfortable, confident ergos
  • Increased grip on bottom, with leaf voids cut into corner radii.
  • Improved compatibility with shortened barrels and suppressors.
  • All parts chamfered, deburred, and tumbled to provide a smooth comfortable finish with no cheese grater effect

*We can not provide any disassembly advice. Henry forearms are hard to take apart. We will not be liable for any damage to your rifle.


Additional information


Black (Type III Anodizing), Elite Moss (Cerakote), Elite FDE (Cerakote)
